15-006 Main Spring Ellis Dock Leveler Loading Dock Pro

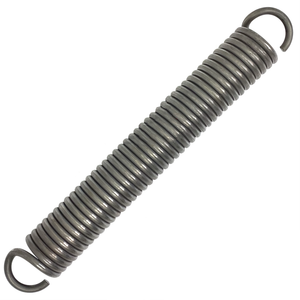

15-006 Main Spring

Ellis

Main Spring

22-1/4 inches total length

21-7/16 inches from inside of hook to inside of hook (see measurement diagram)

18 inches body length

3 inches outside diameter

2-3/16 inside diameter

.440 inch wire diameter

41 coils
