Spring Measurement Chart

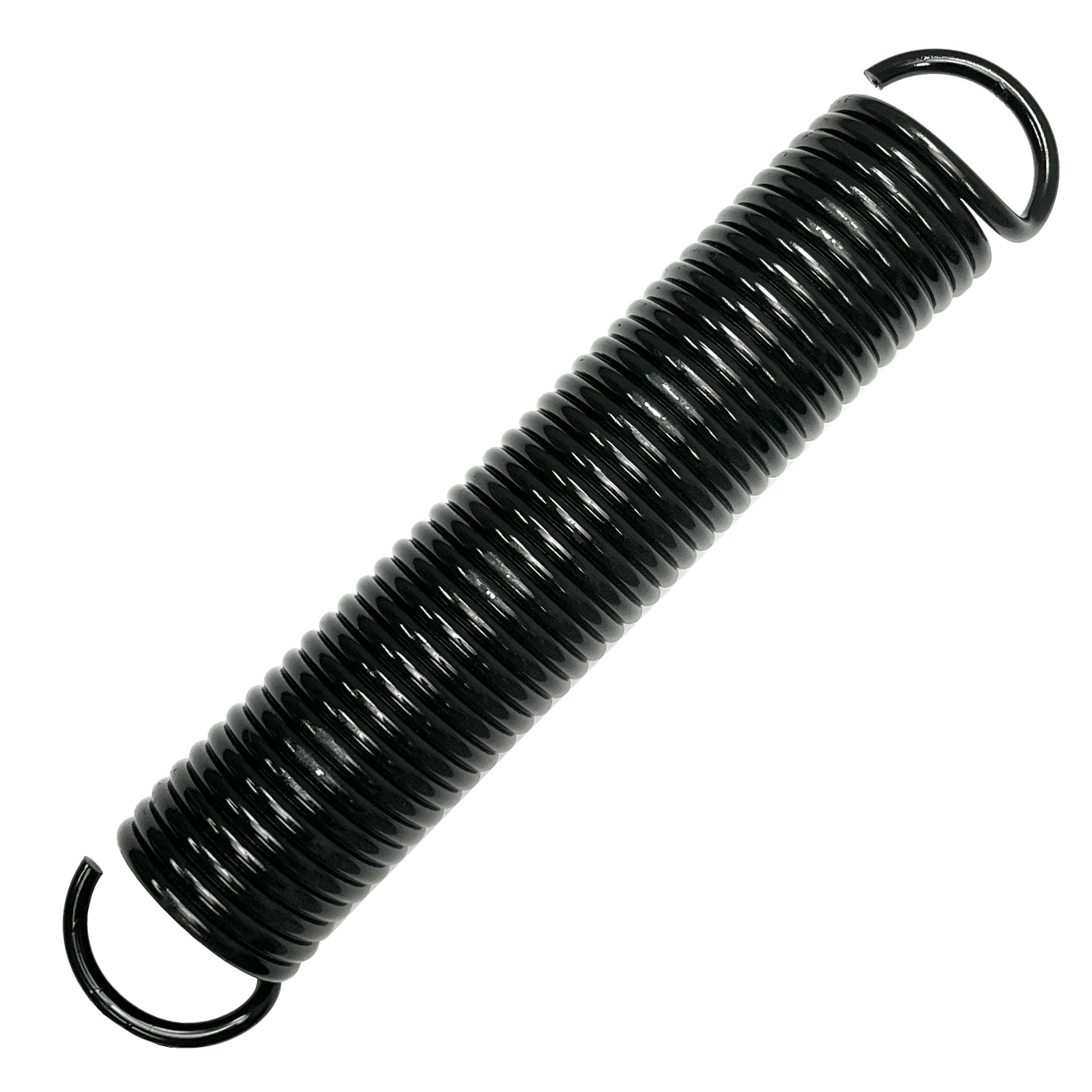

15-005 Main Spring

Ellis

O/S Main Spring For Ellis

20-3/4 inches total length

20 inches inside of hook to inside of hook (see measurement diagram)

16-1/2 inches body length

3-5/8 inches outside diameter

2-7/8 inches inside diameter

~3/8 inch wire diameter

39/40 coils
